Space Saving Easy Turn Driveway Rotating Car Platform

Basic Info.

Model NO.	SJC3-5
Working Mode	Car Ride
Driving	Pin-gear
Falling Prevention Device	NONE
The Vehicle Inlet and Outlet	Center
Design	Turntable
Certification	CE, ISO
Lift Mode	Screw
Voltage	220V
Power Output	0.75kw
Height	120-310mm
Installation	Need One Pit/Non Pit Installation
Rotation	360 Degree
Control	Button Remote Control
Speed of Turning	2r/Min/Adjustable
Transmission Mode	Pin-Gear Drive Mechanism
Platformmaterial	Aluminum Platform/Steel Platform
Load Capacity	3000kgs/Customize
Diameter	5000mm/Optional
Transport Package	Standard Export Package
Specification	CE/ISO
Trademark	Moral
Origin	Jinan, Shandong, China(Mianland)
HS Code	842890
Production Capacity	100 Sets Per Month

Packaging & Delivery

Package Size 20.00cm * 80.00cm * 15.00cm Package Gross Weight 500.000kg

Product Description

Space Saving Easy Turn Driveway Rotating Car PlatformSpecification:
1. For narrow and limited access roads2. 360° rotation right/left 3. Height of the Turntable only120 mm4. Outdoor installation is possible
Main feature:
1.Pin-Gear drive mechanism, ensuring the smooth revolving, reliable operation, low noise,long lifeand minimal wear and tear.2.Surface medium density fibre board, steel plate, diamond tread aluminum alloy available.3.Max. diameter 35000mm available4. Rotate any 360 degree5. Made by steel, FOB Qingdao6. 3 years warranty!!!Car turntable, Vehicle Turntables, Automobile Turntables, Parking Turntables, max 35000mm diameterAUTOMOBILE TURNTABLES FOR HOME OR SHOWRESIDENTIAL DRIVEWAY TURNTABLES SOLVE PARKING CHALLENGESNo need to risk backing into traffic when you have a CarTurner vehicle turntable. Just drive on, push the remote control (like a garage door opener) and the car turntable rotates you safely and easily, so you can drive off head-first. Car turners help eliminate accidents and property damage, and protect children from harm. Turn your parking stress into pride of ownership with this practical and classy upgrade for your home. No digging required as the car turner mounts on the surface of your existing driveway.A vehicle in motion attracts 3 times the attention of the same vehicle sitting still. Are you losing sales to more innovative dealerships? Are you tired of having someone else's car attracting all the attention at the car shows? The Car Turner mirror finish show turntable is a stunning addition to your showroom. It reflects your cars quality from every angle. The revolving reflection leaves the onlookers virtually spellbound. Take a look at the pictures and you will quickly see the impressive effect offered by the mirror finish showroom turntable.
Reference parameter:

Diameter	4000mm	4500mm	5000mm	5500mm	6000mm	6500mm	7000mm
Height	150-320mm	150-320mm	150-320mm	150-320mm	150-330mm	150-330mm	150-330mm
Speed of turning	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm	0.2-1rpm
Load capacity	2000kg	2500kg	3000kg	3500kg	4000kg	4500kg	6000kg
power	0.55kw	0.55kw	0.55kw	0.75kw	0.75kw	0.75kw	0.75kw
Transmission mode	Pin-Gear drive mechanism
Platform material	1.22mm Density Fiberboard 2.steel plate 3.Pattern aluminum plate 4.Tempered glass(choose any one)
Control system	360 Rotation,button control/remote control/PLC control
Other diameter,height,speed of turning,load capacity,pls tell us,we can design and product it for you,thanks

Turntable data:

Item no.	Type	Car turntable
Vehicle size	500018501550
Single Vehicle Weight (kg)	≤2000
Turning plate diameter	4500
Drive Mode	Electric Motor
Speed of turning plate	2r/min
Turning angle	360°any direction
Power source	380V,50HZ,3P/220V,50HZ,3P/other local power
Power coverage	0.75KW
Control System	Push Button, Remote Control or PLC

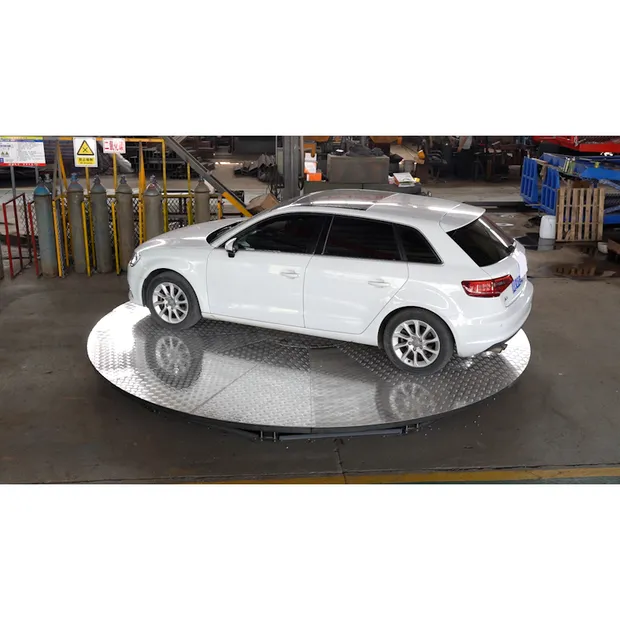

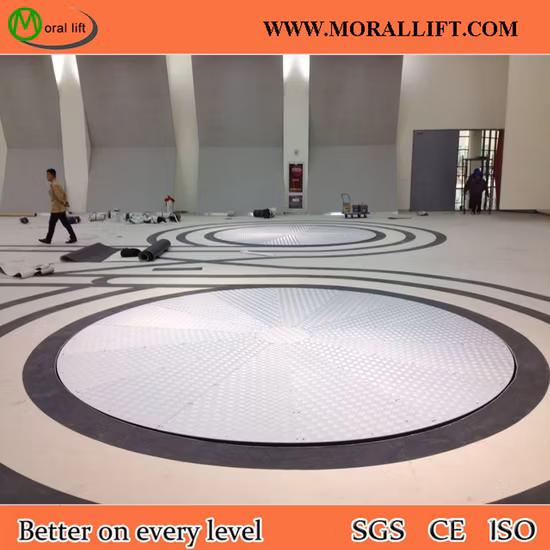

Pictures:

Space Saving Easy Turn Driveway Rotating Car Platform

FAQ
A This is the first time I use this kind of machine, is it easy to operate?There are english manual or teaching video that show how to use machine.If there is still have any question, please contact us by e-mail / skype/ phone /trademanager online service at any time.B If machine have any problem after I receive it, how can I do ?Free parts send to you in machine warranty period if machine have any problem.C MOQ ?The minimum order is 1 set machine, if you order more one time, the price will be better.D How can I buy this machine from you? ( Very easy and flexible !)1. Consult us about this product on line or by e-mail.2. Negotiate and confirm the final price , shipping , payment methods and other terms.3. Send you the proforma invoice and confirm your order.4. Make the payment according to the method put on proforma invoice.5. We prepare for your order in terms of the proforma invoice after confirming your full payment.And 100% quality check before shipping.6. Send your order by air or by sea.E10 good reasons why you should buy from us?1 we are a real factory offering products2 free technical advice by QUALIFIED MECHANICAL ENGINEERS3 company in business for many years4 over 50 countries customers served!5 buy direct saving your money!6 all machine with CE, ISO certificate.7 machine and spindle warranty 1 year.8 our engineer can go to your country to provide technical guidance9 we have phone support in English, if you have any questions, you can call it,we can give you a best solution within 24 hours10 fast delivery, save your time.Thank you for visiting our products!Welcome to patronize !
